TAKING DIGITAL PHOTOGRAPHS IN FISH TANKS

Part 1:

"Digital cameras allow today’s amateur aquarist to take wonderful pictures of their tanks, but obtaining optimal results requires some care and understanding."

Digital cameras allow today’s amateur aquarist to take wonderful pictures of their tanks, but obtaining optimal results requires some care and understanding.   In this series of articles, we will discuss desirable camera features, camera use techniques, and even a few digital post-processing techniques.  If you already have a digital camera, you will learn how to use the camera most effectively; if you are considering purchasing a digital camera, you will learn which features are important to the amateur aquarist, and why.

The best way to buy a camera is to find a way to borrow one, so that you can see how the camera works, and determine whether it feels comfortable to you.  No camera store will lend you a new camera, although some do have no-questions-asked return policies.  Ask around: you may have a friend who will loan you a camera for an afternoon.

I wrote my own image viewing program (JLB Image, for Windows) when I became frustrated with those that were available commercially.  As I needed features, I added them, so the result is half an image viewer and half an image editor.  download it here if you wish .  I will be using it in the examples that follow.  There are many other image processing programs, but they are often much more complex to use than my software, which was designed for simplicity.  In situations where I cannot use JLB Image, I use Picture Window, created by Digital Light and Color at http://www.dl-c.com.

Image Storage

Most cameras store images on internal memory chips (some use diskettes or write-once mini CDs).  The cameras come with the smallest chips available, usually 8 MB or 16 MB.  Such chips are essentially useless, since they will only hold about 10 images, so you will want to buy a larger memory chip.  I usually buy the largest ones available, currently around 128 MB.  These chips will cost an additional $100 or so, and while they are not essential, they will make your life a bit easier.  You will be able to get between 50 and 300 images on such a chip, depending on the size and quality (compression) of the images you take.

Most cameras allow you to take pictures in a variety of  “resolutions”, ranging from a low of 640 x 480 pixels up to perhaps 2560 x 1920.  The larger the image is, the more memory it will consume in the camera.  There is a tradeoff between taking huge pictures vs. being able to store large numbers of pictures in the camera.  You should carefully consider how you intend to use your images before you take them, so that you do not take images that are either too large or too small for your intended use.  For example, if you want to use a picture as “wallpaper” on your computer desktop, there is no need to take a picture that is much larger than, say, 1200 x 1600, or perhaps even 1024x768.  If you want to print an 8x10, or larger, you should shoot the largest image your camera can obtain.  And if you are taking pictures for use on a web site, you may not need to take anything larger than perhaps 1024x768, since larger images take “too long” to download by modem.  When in doubt, take larger images, rather than smaller.

Most cameras store images in JPG format.  This format is a “lossy” format, where you can never recover the original image exactly.  There are “lossless” formats, such as GIF, TIFF, and BMP, but they result in huge image files, often 10 or 20 times larger than the corresponding JPG image.  Many cameras will allow you to take lossless images in a format such as TIFF.  My experience is that the difference between the TIFF and the JPG is almost impossible to see with the naked eye.  I would recommend that you use JPG images unless you can convince yourself that the higher quality TIFF images are important to you.

JPG images are not compressed in a fixed manner: you can compress the images more to reduce storage space, at the expense of image quality.  Most cameras will allow you to specify the image quality, which corresponds to the amount of compression and the image sizes in the camera. You should play with different image quality settings to see which setting is best for you.  Often the highest quality setting results in huge images that offer only marginally better image quality than images of theoretically lower quality.



Focus and Exposure Verification

Digital cameras allow you to verify that you have taken a good picture immediately after you press the shutter button.  All good cameras provide some degree of image playback, but this is complicated by the fact that while camera resolution keeps going up, the resolution of the on-camera displays has not increased.  This means that verifying correct focus using the on-camera display requires that the camera can zoom the image during playback.   Some cameras provide only one level of playback zoom, while others allow you to dive deeply into the picture.  The former is often inadequate, and results in your realizing that the focus was off only after you return to your computer.

Focusing errors can occur for a variety of reasons.  Sometimes you attempt to take a picture of a subject that is too close for the camera to correctly focus on.  This may be obvious if you are focusing manually, but you may not be aware of this if the camera is auto-focusing.  Since minimum focus distance often varies depending on camera zoom setting, you can even have a focusing error while taking a picture of a subject that you have photographed before if you accidentally zoom while trying to take a close-up picture.  Even when the subject is at an adequate distance from the camera, cameras often auto-focus on subjects other than the subject you are interested in.  The only way to deal with this is by inspecting the picture immediately after you take it.

Remember that “film” is now essentially free, so shoot lots of pictures, and be willing to toss most of them away.  This is one wonderful feature of digital cameras when compared to film cameras.  With film cameras, by the time you got the prints back, you couldn’t recall what had caused your pictures to fail.  Now, you can inspect each picture as you take it, to see if you are improving.

Through the Lens (TTL) Picture Framing and Eyepieces vs. LCD Displays

Some cameras allow you to view the image “through the lens”, on a small display either on the back of the camera, or through an eyepiece.  Others only let you frame the image using a separate optical system (as was done with “range finder” cameras in the past).  Cameras with separate viewfinder optics can be discerned by viewing the camera from the front: if there is a glass lens above the main lens, then you probably will not be viewing the image TTL.

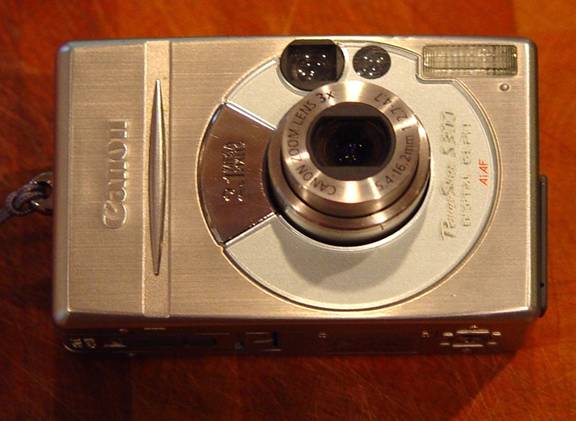

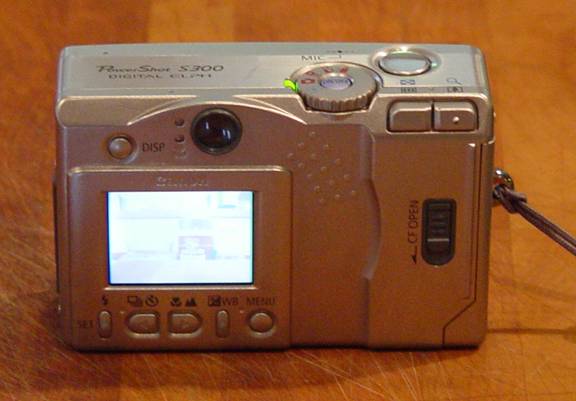

In the example camera, below, the camera lens is in the center of the concentric circles.  There are three other lenses above the main lens.  The lens on the left is the front of the viewfinder optical system: this is what you use to frame the picture with this camera, and this is how you can tell that this camera is not TTL.  The middle lens is used to illuminate the subject in the dark, so that this camera can take good pictures in low light situations.  The glass on the right is actually the flash.



Unfortunately, things are note quite as simple as this.  Many cameras offer both TTL and non-TTL modes, and the Canon camera, above, is one of them.  When you use the eyepiece, you are using the non-TTL viewfinder and optical system, but the camera also has a small (1” x 1.25”) LCD screen on the back, and when you use this screen for framing the picture, you are using a TTL camera.  Here is the camera from the back; the LCD screen is the bright rectangle on the left; the optical viewfinder is the black lens above it.



Most of us are used to film cameras with an eyepiece, so use of an LCD screen for focusing seems awkward at first. Unfortunately, it remains awkward even after you spend some time practicing with it.  Holding the camera out in front of you feels less natural than keeping it close to your body, right in front of your face.  Using LCDs in the sunlight is difficult, since the sunlight washes the LCD image out.  And, for those of us who now need reading glasses, looking back and forth between the LCD screen and the actual scene can be difficult.  Finally, if you ever want to use your camera to take action photos (such as pictures of your friends or kids playing soccer or baseball), use of an eyepiece is essential.  You will not be able to frame pictures rapidly using the LCD screen.

Using a TTL camera is critical for tank photography for a variety of reasons, as described below.  Accurate manual focusing and optimal manual exposures can only be obtained using a TTL camera.

Manual Focusing

Photographing images through a sheet of glass makes the camera’s job of auto-focusing more difficult than normal.  It is not unusual for auto focusing to fail under these circumstances, so having a manual focusing option is important.  This is one reason why you want a TTL camera: you want to be able to focus precisely on the object that is of interest to you, rather than trusting the camera to do this for you.  In a complex scene, with many foreground and background objects, manual focusing can be very important.  Imagine how the camera would react to trying to focus on this scene (which was focused manually):



As camera resolutions have increased, determining optimal manual focus through a digital display can be more and more difficult.  Many cameras now automatically, and temporarily, zoom in while the camera is being focused manually.  This allows you to set the focus correctly, but it can be a bit disconcerting to see the image jumping back and forth between magnifications.

Some cameras allow you to focus manually by using a traditional focusing ring around the lens barrel; others allow you to focus using various buttons.  Choose the camera with the controls that are most comfortable to you.

Exposure Metering Control

Film cameras went to a lot of work to estimate the correct exposure for the film that was in the camera.  Digital cameras benefit from having a “smart” sensor that can tell the camera when it is experiencing over-exposure or under-exposure.  Even better, you can watch the exposure on the TTL viewer, and see whether the exposure is correct before you take the picture.  And, finally, you can inspect the picture immediately after taking the picture, to be sure that the image is as expected.

The big question with exposure has to do with how the camera uses the data that the sensor is acquiring.  The camera takes all or some part of the sensor data and tries to adjust the exposure (shutter speed and lens aperture) so that the resulting light level is right in the middle between white and black.  That is, the camera tries to make the light level “gray”.  When the camera takes all of the incoming scene into consideration, this is termed full frame metering.

When you take a picture with full frame metering where the lighting is even, this is a great approach, but it can fail where some of the picture is very dark and/or some is very bright.  Imagine trying to take a picture with lots of bright white substrate in it: if the camera tries to make the substrate gray, the image will be under exposed.

Full frame metering can also fail if the subject of interest just happens to be either brighter or darker than the majority of the image.  In order to deal with these situations, many cameras offer “center weighted” metering (in which the central ¼ or so of the image is used for exposure estimation) or “spot” metering (in which a tiny spot in the center of the image is used for exposure estimation).  These exposure metering modes allow you to point the camera at the object of interest and obtain an exposure that is correct for that object, even if it is not correct for the overall image taken as a whole.  They will also help you take better pictures if you photograph friends with a bright background (back lighting).

I use spot metering all of the time.  The basic technique is obvious: you point the central spot at the object of interest.  A more interesting approach is slightly more complex.

If you aim your camera (with spot metering enabled) at a scene with complex lighting and slowly move the central spot between a dark area and a bright area, you will notice that as the camera adjusts the exposure to optimize the image under the spot, the rest of the image gets brighter and darker.  You can then carefully move the spot around until you see an exposure that seems optimal to you.  With most cameras, if you then partly depress the shutter button, the camera will compute the correct focus and exposure for the scene (at that instant) and then lock those values until you either press the button all the way down (and take the picture) or release the button.  With the button partly depressed, you can then re-compose the picture and take it with the exposure that you desire.

A word about the images you are about to see.  I will be showing you two kinds of images: “full frame” and “full resolution”.  The “full frame” images show you the entire picture that the camera took, but reduced in size, so as to make the image small enough to be downloaded in a reasonable time.  The original pictures may have been 2500 x 1900 pixels, but I show them here at about 800 x 600 pixels.  I usually show full frame pictures so that you can understand the composition of a picture, or its exposure.

The “full resolution” images show you a small part of the original picture, at the original resolution, but cropped down to roughly 800 x 600 to allow downloading.  I usually show full resolution images so that you can appreciate some details in the picture.

Here are three identical full frame images that were taken with full frame metering, center weighted metering, and spot metering:







The first image has a nicely exposed background, but the coral is over exposed.  This is because the camera tried to optimize exposure for the whole scene, and with a large brightness difference between the coral and the background, the camera was unable to optimize either.

The second and third images have better exposures for the coral, since, in this scene, the coral fills the center of the image.  Of course, this exposure comes at the expense of the exposure for the background.

Use of the spot-metering mode allows you to select the exposure that seems best to you.  The trick is to locate a part of the scene which has high contrast, and then slowly move the center of the scene from the darkest location to the brightest (or vice versa).  You will see a series of different exposures presented to you, as the spot meter moves from dark to light.  By choosing a location which results in the optimal exposure, you can take the exact picture that you want, the picture that emphasizes the subject that you’re interested in.

The full frame pictures below illustrate this spot metering technique.  I started out centered on the dark hole in the rock, which resulted in lots of detail visible in and near the hole, but with the white coral over-exposed.  Even the purple encrusting coral is a bit washed out.



The second picture is centered on the purple encrusting coral, which results in a nice picture of the coral, but loss of detail inside the hole in the rock.



The third picture is centered on the dark underside of the white coral.  The result is that the purple encrusting coral is now too dark, the hole in the rock is totally black, and the white coral tips are nicely exposed.



The fourth picture is centered on the brightest part of the white coral.  This makes almost all of the image too dark.



There is no correct or optimal exposure for a given scene.  There is an optimal exposure for an object in a scene once you have decided what object you are interested in.  Use of this spot-metering technique can help you get the best exposure for the specimen you are photographing.

Exposure Modes

Some cameras only function in fully automatic exposure mode, but others allow you to select either your aperture or your shutter speed manually.  This feature is not essential in tank photography, but it can be very useful when taking sports photographs, where control of the shutter speed is essential.  It can also help you take low light pictures such as fireworks or control depth of field (discussed later).

We will continue to discuss the following topics in the second part of this article:

Sample Images

Here are some images I have taken over the years, for your enjoyment.  Please visit my web site, www.sover.net/~jbondy, and click on the two Reef Tank links, near the top, to see more of my photographs.

A close-up of an atlantic anemone:



A bubble anemone with a clown fish snuggled inside:



Another clown fish and anemone:



A flower anemone eating a shrimp casing



A green-centered flower anemone:



A pacific anemone shows it's striated under skirt:



Blue legged hermit crab close-ups:





A red crab close-up:



Author’s note: all of the pictures were made a uniform width, and that their size and resolution, as they appear in the article, are not at all the same as the original pictures


Part 2:

Computer/Camera Connections

Most cameras allow you to download your photographs to your computer by connecting the two using a USB or FireWire cable. A few cameras allow you to just place the camera in a docking station or cradle which recharges the battery and connects to the computer; others require that you plug various cables into the camera to achieve these ends. The docking station, or cradle, is much more convenient than all of those cables.

Battery Time Display

Look for a camera that provides a continuous display indicating how much battery time remains. Without this feature, your camera will suddenly roll over and die when the battery is depleted. An on screen battery indicator will prevent a lot of frustration.

Batteries

Some cameras use batteries that are specific to the camera, or to the manufacturer (like Sony’s InfoLithium). Custom batteries allow the camera to have special features (like Sony’s battery time display, which relies on the InfoLithium batteries to compute the time). Custom batteries can also be manufactured in custom shapes, which can help the camera be as compact as possible.

Other cameras let you use standard AA or AAA batteries. Use of standard batteries ensures that you are never out of battery power for long, since you can purchase batteries at any convenience store. Cameras that allow you to use standard batteries also allow you to use rechargeable batteries (NiCad or NiMh) and to have a spare set with you. Buying a spare non-standard battery is often much more expensive.

Powering the Camera using AC

Most cameras will function for an hour or two on a fully charged battery, which is more than enough time to take lots of tank photos. Some cameras allow you to connect the camera to AC power, which eliminates any time limit imposed by the battery (with the extra awkwardness of a trailing cable). This feature can be useful if you are using the camera to give a photo show (when connected to a TV, for example). It is also convenient to have the battery charged while still in the camera, rather than having to remove and then re-insert the battery every few days.

Zoom Range

Most cameras allow you to “zoom” in on your subject, with zoom ranges varying between 2:1 and 28:1. Be cautious when reading about zoom ranges, since most manufacturers brag about the “digital zoom” rating, not the “optical zoom” rating. The former is the optical range plus some digital enhancements of the image. Since you can’t get something from nothing, it should not surprise you that digital zooming is best ignored. You can always perform a digital zoom later, on your computer, so concentrate on optical zoom range when comparing cameras. You should disable digital zooming on your camera as soon as you get it.

Most cameras offer an optical zoom range of around 3:1. The larger the zoom range, the longer, wider, heavier, and more expensive the lens has to be in order to maintain image quality. Older cameras had very large zoom ranges (Sony Mavica 95 was 14:1; Sony Mavica CD-1000 was 10:1), but they were taking pictures that had much lower resolution than the newer cameras. As camera resolution has increased, the manufacturers had two choices: either maintain the large zoom ranges, even if it meant larger, heavier, and more expensive lenses and cameras; or reduce the zoom ranges in order to keep cameras small and relatively inexpensive. Even the best of the newer cameras tend to only have a 5:1 zoom range (Sony DSC-F707). Choose the largest zoom range that you can afford.

Large Lenses

Taking pictures in a fish tank is like taking pictures indoors: there is some light, but not a lot of light. You can get more light on the subject in three ways: actually buying more or brighter lights for the tank; using a flash; or buying a camera that can take photographs at lower light levels. We will discuss this more later, but cameras with larger diameter lenses are likely to collect more light, and are likely to take better pictures in lower light conditions. Larger diameter lenses mean more weight and increased cost, and, often, decreased zoom range. Look for cameras with the largest glass that you can afford. The Sony DSC-F707 is a good example of a large-glass camera.

Virtual Zooming

Note that there is a “trick” you can use to increase the effective zoom range of your camera; I call it “virtual zooming.” This trick depends on the intended use of the image. If you want to make an 8x10 print, you may need all of the pixels the camera can provide, and no virtual zooming is possible. If you want to create “wallpaper” for your desktop, you may be able to get away with only half of the maximum camera height or width; this can provide a virtual zoom of 2x. And if you want to create a web image, you may well want the height and width to be halved again, to minimize image download times; this can result in a virtual zoom of 4x.

Let’s suppose that you want to create a wallpaper image, and that your computer screen runs at a 1024 x 768 resolution. Given a high-end camera, with maximum resolution of 2500 x 1800 or so, you will be using less than ¼ of the original image you shoot. Used this way, you get an effective additional 2x zoom when you crop the original image down to the wallpaper size.

As an example, here is a full frame image of a diamond goby. The original image was 2500 x 1900 pixels.

The image below is a full resolution image of the central 1/3 of the original image. The details are impressive, showing the full potential of virtual zooming.

So, even though the optical zoom ranges are getting smaller on the cameras, the increase in camera resolution means that images of the same pixel size result in the camera system having the same effective zoom range as they did in the past.

Close-Up or Macro Photography

Virtually all of the dramatic photographs in a fish tank use close-up or “macro” photography. The closer your camera can focus in macro mode, the more likely you are to be able to take dramatic pictures. Add-on close-up lenses can be used with some cameras, but they can be awkward to use. If you want to use add-on lenses, make sure that you buy a camera with a threaded lens so that you can properly mount the add-on lenses.

Most cameras have a macro mode, which is enabled by pressing a button; that button often has an icon like a flower near it, to remind you that you need macro mode to take close-ups of flowers. It may seem strange to you that you have to tell the camera that you want to take a close-up, but this is a feature, of sorts. It takes longer for the camera to auto-focus when it has to consider focusing on near objects as well as far objects. By only focusing on far objects most of the time, the camera can reduce the delay during auto-focusing most of the time.

The minimal focusing distance often gets larger (farther away) as you zoom in. Filling the image with the subject of interest can take some experimentation and some fiddling. As you zoom in, you may have to move the subject away from the camera to keep it in focus, and this will reduce the effective size of the subject in the image. Thus, trying to use maximum zoom can sometimes be a losing battle.

Depth of Field

The term “depth of field” refers to the fact that often the entire scene cannot be kept in perfect focus; if it were, we would not have to focus at all. When you focus on a subject, often the objects behind the subject, and in front of the subject, are out of focus. When only a small range of distances are in focus, this is termed narrow depth of field. Narrow depth of field results in dramatic pictures, where the subject jumps out at you, but it requires careful and correct focusing. With large depth of field, focusing is easier and focusing mistakes can often be ignored.

There are ways to increase or decrease depth of field. The larger the aperture used (the smaller the F stop), the narrower the depth of field. On some cameras, you can manually select the largest aperture, to ensure the smallest depth of field. To enhance depth of field, you can choose smaller apertures (larger F stops), but this requires either slower shutter speeds (which may lead to blur) or more light. Most tank lights are dim enough that narrow depth of field is forced upon you.

Depth of field is also decreased as you increase the telephoto (zoom in) or focus closer (macro). All of these factors contribute to the fact that many tank photos will have narrow depth of field, like it or not. Sometimes the best images can be acquired if you “un-zoom” (to go wide angle), which allows you to either move closer to the subject (or move the subject closer to you) and to obtain widest depth of field.

Shallow depth of field can make photographs dramatic, but it also can be frustrating when the subject you had in mind is out of focus. If your subject cannot all be in focus, decide which parts of the subject require the focus and which do not. Having a head-on shot of a fish where the lips and eyes are out of focus is usually more distracting than effective. When possible, re-orient your subject so that more of it can be in focus: a side shot of a fish might be nicer, since more of it can be in focus.

Decreasing Apparent Depth of Field using Post Processing

Minimizing depth of field can result in pictures which are dramatic, because all of the images in front of and behind the subject are out of focus. Many image processing programs (including Picture Window) offer you the ability to blur parts of the image manually. This might seem like a strange thing to want to do, but when used judiciously, you can achieve the effect of minimal depth of field by manually blurring the parts of the image that are not important to you.

Here is a mediocre picture of a red headed goby. The focus is not perfect, and the colors are somewhat washed out.

Here is the same picture after I manually blurred the objects in the background. Increasing the blur in the background makes it seem as if the focus on the fish is better.

Every good photograph should have some area that is black, and some area that is white. That is, the brightness range should use the full range of available values, for optimal contrast. Photographs that are taken with inadequate contrast seem washed out and foggy. One facility JLB Image offers is the ability to point to the darkest place in the image, and the brightest, and have the computer adjust the brightness so that there is a true black and a true white. This can rescue an otherwise boring photograph. I used the “Make black/white” feature in JLB Image to enhance contrast, to end up with a picture that is much more compelling.


Back to Macro Photography

Here are two full frame photographs of the same specimen, taken at the same focused distance. The only difference is that one is fully wide angle (un-zoomed) and the other is zoomed as much as one can while still maintaining focus. Both show the full frame of the original picture, reduced to 1/16 the number of pixels (1/4 horizontally and vertically).



The depth of field “problem” is more apparent in the zoomed picture, where polyps are out of focus behind and in front of the polyps that are in optimal focus.

Chromatic Aberrations and the Aquarium Glass Prism Effect

The next two full resolution images show the center and the left side of the wide-angle picture, at the native resolution of the camera:

The center of the picture looks good, although some depth of field reduction is visible.

The left side of the picture shows some chromatic aberration, or color fringing. Some of the polyps on the left side of the image clearly have a blue ghost to the left of the main image. This is due to the prismatic effect of the aquarium glass. The camera lens would prefer that the aquarium glass be shaped like a sphere, so that all light rays entering the lens come square through the aquarium glass. As the camera lens looks at the aquarium glass at an increasing angle, the glass acts more like a prism, separating out the different colors. A quick look back at the center image, above, shows no obvious chromatic aberrations.

How do we minimize this problem? One way is to try to use the center of your pictures, and discard the edges, which may have these colored fringes. Another way is to back away from the tank, to minimize the angle through which the light passes through the aquarium glass. Of course, this makes it difficult to get dramatic macro photographs.

Here are similar images from the zoomed picture. The narrow depth of field is clear in the first picture, and the color fringes are clear on the left-side picture, although they are less obvious because the background is not as dark. This is because the decreased depth of field has made the polyps at the top of the coral become out of focus, and this loss of focus has also diminished the impact of the chromatic aberration.



I hope this discussion has been useful to you. I’d be happy to answer questions by email should you have any (jbondy@sover.net).

We will continue to discuss the following topics in the third part of this article:

Sample Images

Here are some images I have taken over the years, for your enjoyment.

An algae blenny:

This bi-colored blenny liked to sit on my hairy green mushroom corals, right up until they closed in on him:

A dramatic pose, with shallow depth of field adding to the effect:

An extreme close-up of the blenny:

A clown fish among the tentacles of a pacific anemone:

This picture was taken with side lighting from a setting sun: the shadows are dramatic:

Puffer fish have amazing eyes!

I have a soft spot for scooter blennys…

This yellow headed sleeper goby dug a hole in the substrate as soon as he arrived:

He was soon, but briefly, joined by a watchman goby:
